The ECV 4600 W generator is an inverter single-phase generator in the VARI range.
Product description
The ECV 4600 W generator is equipped with a ZONGSHEN engine, has two 230 V sockets and a 12 V charging socket. The inverter ensures a constant output voltage and thus allows modern electronics, which are sensitive to network fluctuations, to be safely connected to this generator. The main advantages are a partially soundproof design and a large fuel tank with the volume of 9,6 litres with an indicator. That ensures approximately 6,5 hours of continuous operation. There is also a diagnostic multifunctional display and a robust protective frame.
Do you need more power? Have a look at the ECV 5500 W generator.
ADVANTAGES
- 2 x socket 230 V / 16 A
- 1 x DC charging output 12 V / 8,3 A
- diagnostic multifunctional display
- run time of 6,5 hours
- robust protective frame
- partially soundproofed version
Videos
Technical parameters
Engine type | GB270B(E)-2 |
---|---|
Engine displacement | 272 cm3 |
Maximum output | 4,6 kW |
Rated output | 4,2 kW |
Rated voltage | 230 V |
Rated frequency | 50 Hz |
Ingress protection rating | IP 23 M |
Oil filling volume in engine | 1,0 litres |
Engine oil grade | 10W-30 |

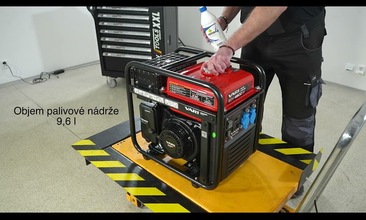

Fuel tank volume | 9,6 litres |
Run time per tank | 6,5 hr. |
Length x width x height | 535 x 355 x 495 mm |
Weight | 38 kg |
Article no. | 4635 |
EAN | 8591039063019 |
Documents
ECV 4600 W generator (Instruction for use) ![]() |
Download |
---|
