The F-700 Hydro mulcher with a cutting width of 70 cm is a professional machine intended for disposal of really overgrown stands or for long-term unkept land reclamation with self-seeding plants. It is equipped with a powerful four stroke HONDA GXV 390 engine and a hydrostatic gearbox with a continuous forwards and backwards drive.
Product description
The F-700 H professional mulcher with a TUFF TORQ K-46ED hydrostatic gearbox is designed for disposal of overgrown stands on large areas and rugged prone terrains. It is especially suitable for municipalities, municipal services and for all demanding users and owners of large areas – everywhere, where professional machines with high utility value are needed. A robust design of the machine is perfect for extreme conditions. The strong four stroke HONDA GXV 390 engine, the TUFF TORQ K-46ED gearbox with a continuous drive speed regulation with no need to stop the blade drive, the automatic differential lock, the big travell and guiding wheels resistant to puncture, the side and height adjustment of handlebars, the adjustment of a cutting height in six positions from the operator´s place - these features enable maximum adaptation of the machine to the given terrain. The machine is equipped with an automatic and service brake. The cutting is ensured with a massive GATOR mulcher blade with a safety brake.

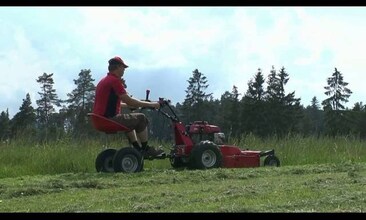

It is possible to connect the AV-650 seat to the F-700 Hydro mulcher for a comfortable cutting on larger areas.
Accessories
- a comfortable sprung AV-650 seat
ADVANTAGES
- professional HONDA GXV 390 engine
- TUFF TORQ K-46ED hydrostatic gearbox
- automatic differential lock
- 18” travel wheels and new guiding wheels
- ergonomics of handlebars
- replaceable shaft support of the blade and bearings
- service and safety brake, jaw brake of the blade
- GATOR mulcher blade
- central stubble height adjustment in 6 positions from the operator's place
- side opening for easier cleaning of the cutting space
- guaranteed slope accessability 30°
- innovated Optibelt kevlar V-belts
- F-700 Hydro mulcher replaces three workers with brushcutters

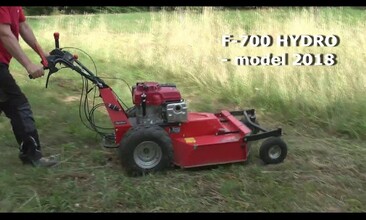

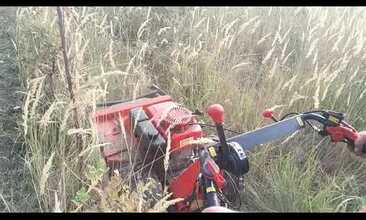

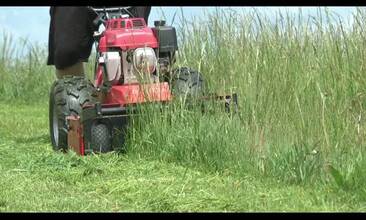

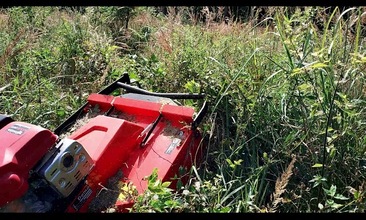

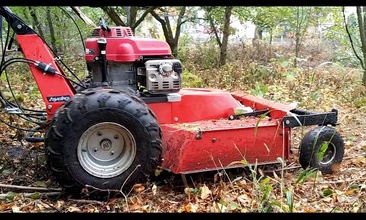

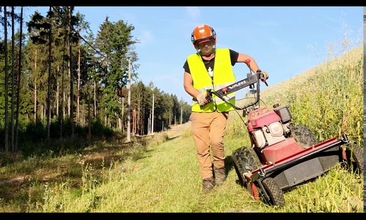

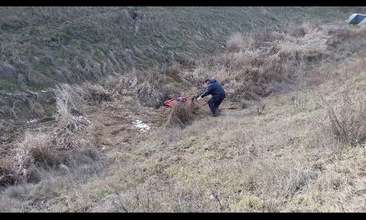

Videos
Technical parameters
Engine | HONDA GXV390 |
---|---|
Engine displacement | 389 cm3 |
Engine category | 13 HP |
Torque | 24,2 N.m |
Technology | OHV |
Oil filling volume in engine | 1,1 litres |
Engine oil grade | 10W-30 |
Fuel tank volume | 2,1 litres |
Guaranteed slope access ability | 30° |
Machine brake | service and automatic |
Area performance | up to 5 600 m2/h |
Working width | 70 cm |
Cutting height | 6 positions / 6 - 11 cm |
Type of gearbox | TUFF TORQ K-46ED hydrostatic |
Number of speeds | continuous gear change |
Travel speed | FRONT: 0 - 8,0 / REAR: 0 - 1,5 kph |
Oil filling volume in a gearbox | 2,3 litres |
Gearbox oil grade | hydraulic oil 10W-30 |
Recommended oil | TUFF TECH Oil, Article no. 187Q0899000 |
Recommended area | unlimited m2 |
Handlebars adjustment | height and side |
Possible accessories | AV-650 seat |
Weight | 135 kg |
Article no. | 4448 |
EAN | 8591039060902 |
Documents
F-700H (instructions for use) 1,7 MB | Download |
---|
