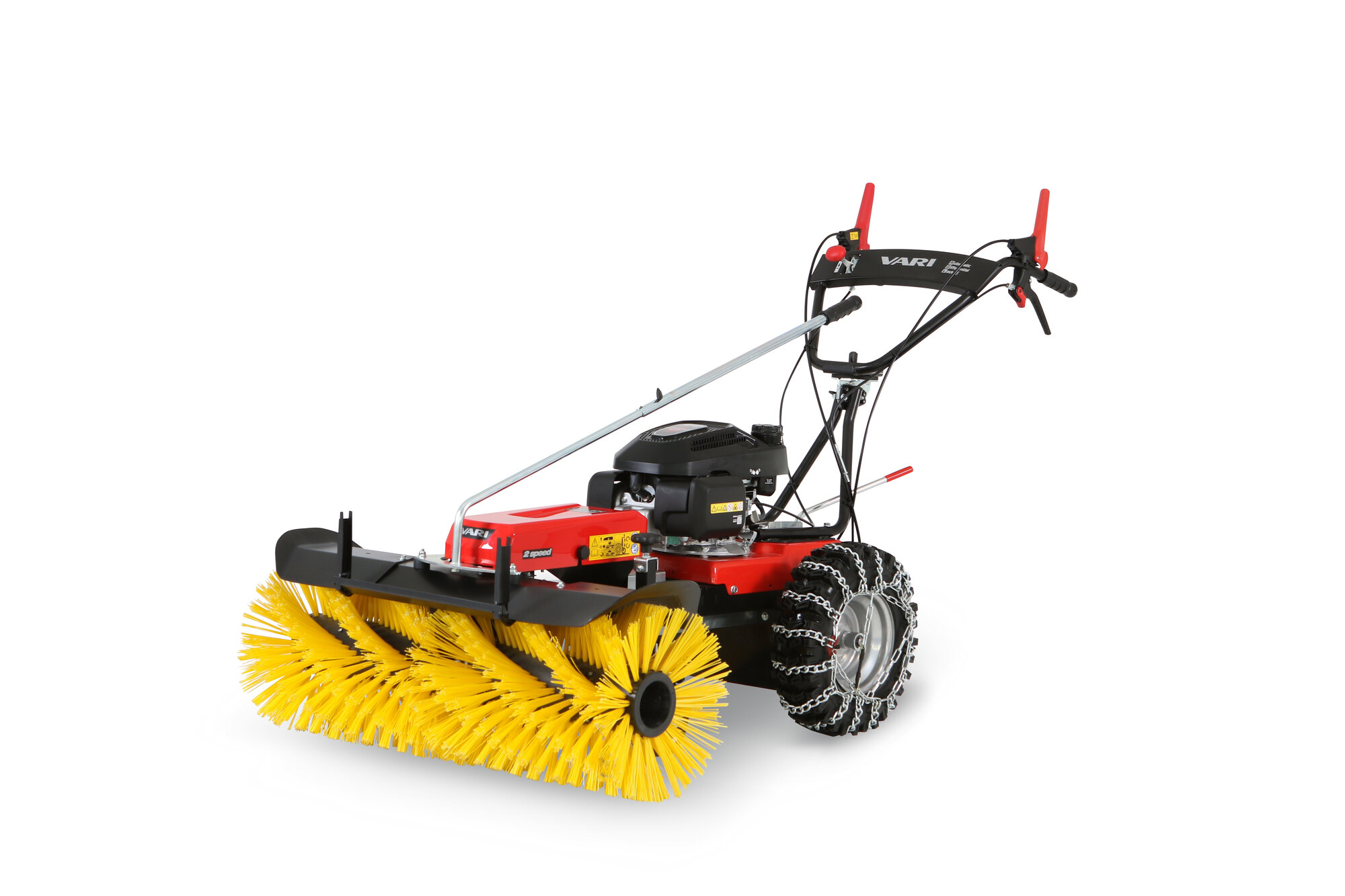

The professional CB-1000 PRO brush sweeper with the working width of 100 cm is a professional helper for the year-round maintenance of paved areas in towns, municipalities or company premises. It is equipped with a new generation HONDA GCV200 engine and a GGT/VARI 4+R mechanical gearbox with automatic differential lock.
Product description
The professional brush sweeper with a GGT/VARI 4+R mechanical gearbox with an automatic differential lock excels in a great compactness, a perfect manoeuvrability, a high sweeping performance and a wide range of accessories. The design of the machine is taken over from the other professional machines with the spiral arrangement of bristles.
The operator´s comfort is given by the height and side adjustment of the handlebars. There is an antivibration dumping item in the handlebar junction, which absorbs the vibrations. The handlebars are equipped with ergonomic control levers with a low pressure to the hands and air chambers in the grips that eliminate the micro vibrations.
For working on larger areas, a braked AV-650 seat with a sprung seat can be connected behind the brush.
Accessories
ADVANTAGES
- HONDA GCV200 engine (201 cm3, 12,7 Nm, EURO V)
- GGT/VARI 4+R change gearbox with the automatic differential lock
- side and height adjustment of handlebars
- antivibration dumping item
- pressed chassis parts, low center of gravity and wide wheel gauge
- two-speed brush – summer and winter mode
- possibility to use snow chains
- two continuously adjustable support wheels
- side adjustment of sweeping cylindres from the operator´s position
- service and parking brakes
- big wheels with a perfect adhesion on grass
- accessories (collector, dust cover, dozer blade, snow chains)
- hitch for AV-650 seat
Technical parameters
Engine type | HONDA GCV200 |
---|---|
Engine displacement | 201 cm3 |
Engine category | 6 HP |
Torque | 12,7 N.m |
Engine type | OHV |
Oil filling volume in engine | 0,4 litres |
Engine oil grade | 10W-30 |
Fuel tank volume | 0,91 litres |
Guaranteed slope access ability | 20° |
Number of adjustment positions | 5 |
Area performance | up to 5 600 m2/h |
Working width | 100 cm |
Number of speeds | 4 + R |
Travel speed | 2,3 - 3,4 - 4,0 - 5,6 / R 3,1 kph |
Handlebars adjustment | height and side |
Possible accessories | snow chains, collector, snow blade... |
Weight | 94 kg |
Article no. | 4629 |
EAN | 8591039062968 |
