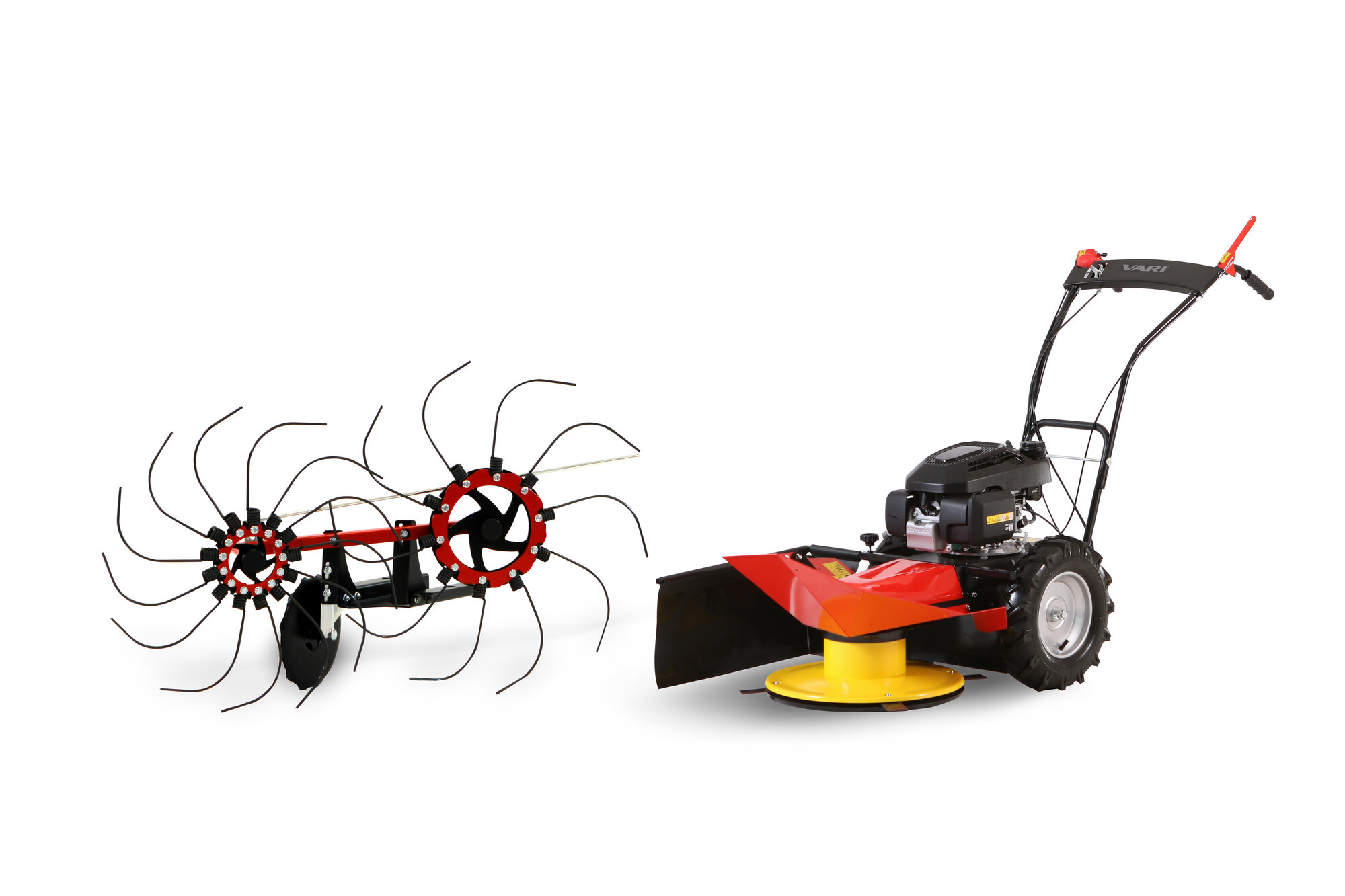

The BDR-620 Lucina MaX drum mower equipped with a powerful four-stroke HONDA GCV200 engine is offered as a set with the SH-600 finger-wheel hay rake.
The Lucina MaX as a drum mower is characterized by a perfect balancing while working on plane and on slopes as well, it has a fixed drive axle, a tough resistant frame with an asymmetric red coloured cover of the cutting disc made of HDG sheet-metal, which enables a better direction of cut grass and its laying into rows. It ensures a perfect operator´s safety at the same time. A working tool of the drum mower is a four-bladed cutting disc – a very robust pressed part with an allover steel fender apron, which protects the blade bracing. The T-Bar bracing of the blades increases an circumferential toughness of the cutting drum and its whole lifetime.
The converting of the machine into a mulcher, a snow blade, a brush or a finger-wheel hay rake is very easy. It takes from 10 to 15 minutes using the tools and it is possible to make the assembly yourself. The connection of the accessories drive is assured by a patented system of a split shaft and a grooved clutch. This solution enables easy disassembly for a whole lifetime of the machine.
In addition is in this set a SH-600 finger-wheel hay rake with a working width of 60 cm, which is a perfect helper for hay raking, tedding and rolling down. The two spoked wheels with ball bearings are equipped with spring wires, which is a very regardful way of hay tedding, because the grass seeds remain in the spikes. The adapter is connected instead of the cutting drum of the Lucina MaX and as the extension of a machine usage.
The operator´s comfort is improved by a handlebars adjustment in 6 positions, ergonomic levers with a low pressure to the hands and grips with air chambers, which eliminate micro vibrations. Big 8” wheels with an arrow pattern ensures a better pass ability through the terrain.
Thanks to the strap holders integrated directly to the machine frame for better fixation of the machine during the transport meets the machine a strict EU norm for safe load transport.
- four-stroke HONDA GCV200 engine
- possible to change the cutting drum for the finger-wheel hay rake, the mulching adapter, the snow blade and the passive sweeping brush
- fixed drive axle
- independent switching of wheel and cutting drives
- patented connection with adapters
- VM-580 adapter with patented cover design and guiding spur
- aluminium worm drive gearbox
- two travel speeds
- big 8” wheels with a GRASS TRACK pattern
- jaw brake of the cutting drive
- kevlar Optibelt V-belts
- ergonomic handlebars and control elements
- strap holders for fixing the machine during the transport
- SH-600 finger-wheel hay rake as a part of this set
|Engine type||HONDA GCV200|
|Engine displacement||201 cm3|
|Engine category||6,5 HP|
|Oil filling volume in engine||0,4 litres|
|Engine oil grade||10W-30|
|Fuel tank volume||0,91 litres|
|Guaranteed slope access ability||20°|
|Area performance||up to 1 752 m2/h|
|Number of blades||4|
|Working width||62 / 60 cm|
|Cutting height||4 cm|
|Number of speeds||2|
|Travel speed||2,0 - 2,8 kph|
|Recommended area||up to 15 000 m2|
|Weight||62 / 15 kg|
