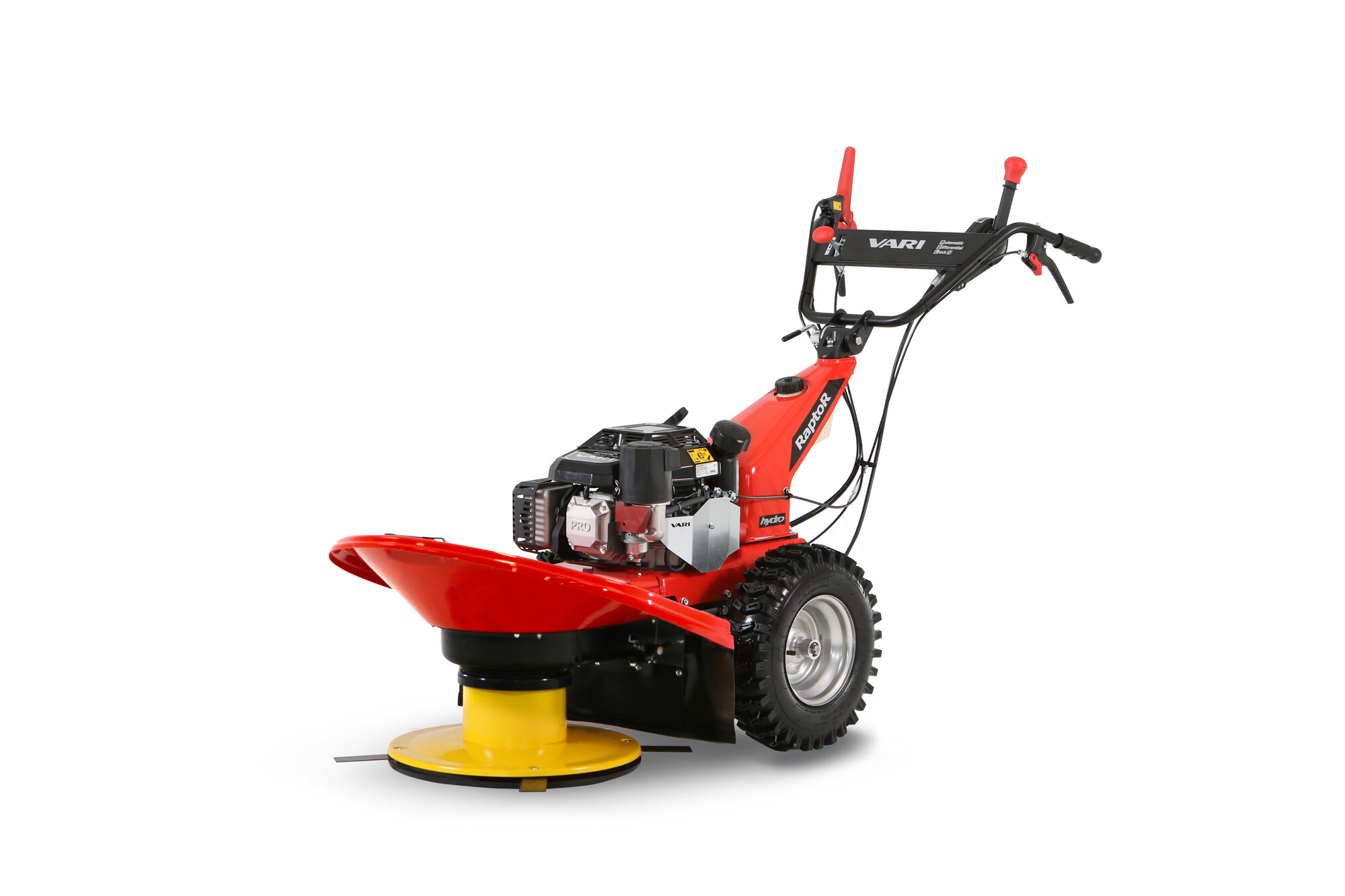

RBS-700 drum mower
The RAPTOR Hydro drum mower is intended for regular cutting of long grass, which is possible to use for drying. It is connected to the RAPTOR Hydro carrier very easily using four screws.
Product description
A working tool of the drum mower is a five-bladed cutting disc – a very robust pressed part with an allover steel fender apron, which protects the blade bracing. The T-Bar bracing of the blades increases circumferential toughness of the cutting drum and its whole lifetime. The drum mower is equipped with a plastic cover of the cutting disc, which enables a better direction of cut grass and its laying into rows. It ensures a perfect operator´s safety at the same time. It is connected to the RAPTOR Hydro carrier very easily using four screws.
ADVANTAGES
- pressed double cutting disc with reinforced edges
- 5 pivoted cutting blades in a casted T-Bar
- spiracles in the drum help to better grass removing
- working width of 70 cm
- easy and quick connection
- starting/brake of the drum mower using the into the carrier integrated clutch/brake
Videos
Technical parameters
Cutting height | 4 cm |
---|---|
Number of blades | 5 |
Working width | 70 cm |
Recommended area | unlimited m2 |
Weight | 25 kg |
Article no. | 4472 |
EAN | 8591039060964 |
