TK-01 third wheel

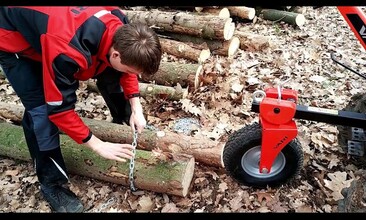

The TK-01 third wheel is perfect for pulling heavy logs from hard-to-reach places in the forest or windbreak, preferably in combination with the PN-200 drawing winch.

Innovation
Compare

Product description

The swivel third wheel to the VARI minitractor make the work easier, when you need to pull some heavy load using the minitractor. Both, the steering pin and the wheel itself, are supported on two ball bearings,which makes the small tractor with the third wheel very easy to handle. The TK-01 third wheel is equipped with a lug for fastening the roper or chain, so you can pull heavy and long logs out of the forest, for example. The TK-01 third wheel must be loaded with two 5 kg weights to keep the machine well balanced.The PN-200 drawing winch can be attached to the TK-01 third wheel, allowing you to pull logs out of difficult terrain.The TK-01 third wheel can also be used for parking, stopping the machine, and moving it to another place without the need to hold stability. It is connected to the Z-01 hitch.

ADVANTAGES

  • ensures machine stability
  • suitable for pulling heavy logs from difficult terrain
  • perfect combination with the PN-200 drawing winch
  • lug for attaching a rope or chain
  • necessary to be loaded with 5 kg weights
  • wheel on bearings for easy operation
  • 2025 innovation - new swivel pin support, larger diameter = greater pin strength, extended rod for placing up to four 5 kg weights

Videos

Technical parameters

Wheel size 40 cm in diameter
Wheel width 11 cm
Weight 11 kg
Article no. 4516
EAN 8591039062005
