RAPIDO wood chipper is intended for the TERRA-VARI driving units with the 80 mm centrifugal clutch.
The wood chipper was designed to cope with branches up to 6 cm in diameter. The best way is to crush fresh branches. The more dry and tough the branches are, the more difficult it is to cope with the crushed material for such machines like shredders and chippers in general.

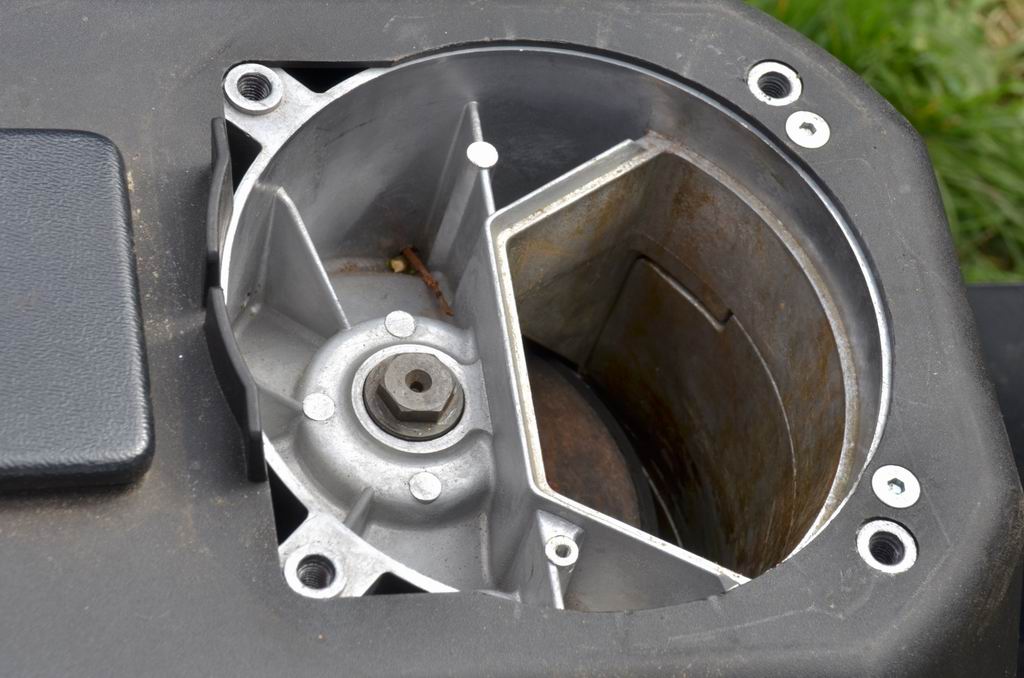

There is a patented system of crushing - a crushing head. It is a slow-running worm garden waste shredder with a double-threaded spiral. Its big advantage is a self-feeding of the crushed material into the crushing head, high resistance which ensures long lifetime and in comparison with the other shredders up to 10x higher speed of work.
There were made some innovaitons in the year 2019 - the fixed manipulation handle was replaced by a telescopic one, so the handle doesn´t restrain the operator while working with the machine. For easier transportation is possible to push the handle out. For even better energy accumulation we use a heavier flywheel, which is placed under the crushing head and it is possible to crush the branches up to 60 mm in diameter.
Power transmission from the engine to the crushing mechanism is ensured by a high quality multi-groove V-belt from the company Optibelt (18 grooves).
The RAPIDO wood chipper will be surely appreciated by the owners of the VARI minitractors with the driving unit.
- self-feeding of the crushed material into the crushing head
- smooth running
- crushing head revolutions 540/min
- steel flywheel under the engine for the energy accumulation
- approximate size of wood chips 20 mm
- wood chips are perfect as a mulch layer or fuel
- transport wheels and manipulation handle
- heavier fly-wheel
- telescopic handle
|Engine power||3,5 - 6,5 HP|
|Approximate size of wood chips||cca 20 mm|
|Maximal diameter of crushed material||up to 60 mm|
