PJGCVx200

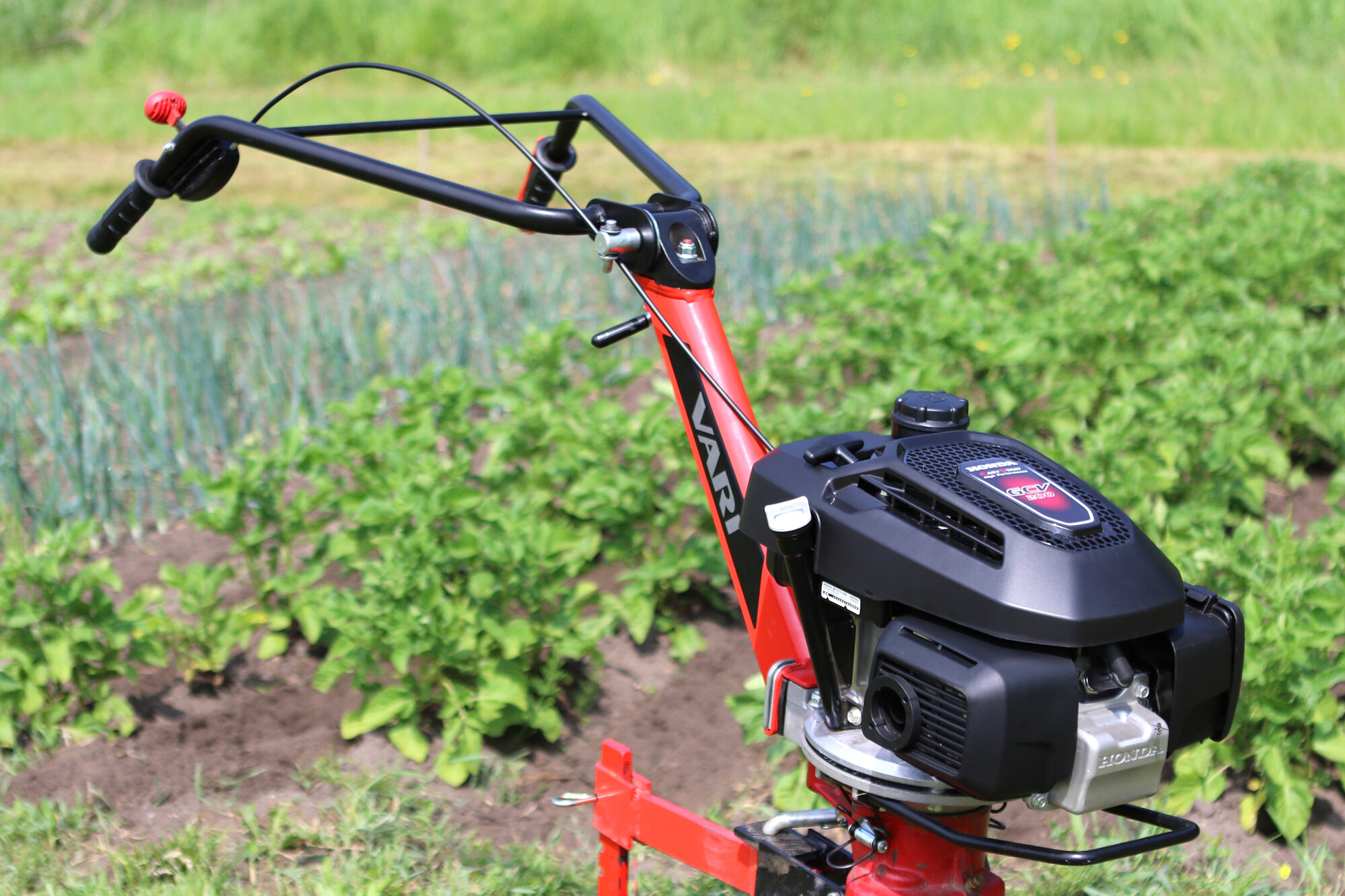

The PJGCVx200 driving unit with a four-stroke HONDA GCV200 engine is intended for VARI gearboxes and for all machines, which are connected directly to the VARI driving units.

New

Product description

 The PJGCVx200 driving unit is intended for the VARI-GLOBAL minitractors, however it may be used for all the TERRA-VARI gearboxes and chassis since the 1969 production.

The PJGCVx200 driving unit is equipped with the HONDA GCV200 engine of the new generation, which meets the strict EURO V exhaust emission regulation. The aluminium flange has an antivibration handlebar attachment to minimalize the vibrations in handles. There are grips with air chambers, which eliminate micro vibrations. We emphasize ergonomics and operator´s comfort when designing the handlebars. The handlebars are height and side adjustable directly from the operator´s place. Thanks to the low weight of c. 20 kg is it possible to carry the driving unit very easily either to another chassis or for example for transport or storage. The three-jaw centrifugal clutch is a part of the driving unit.

ADVANTAGES

  • new four stroke HONDA GCV200 engine
  • low fuel consumption approx. 0,8 litres/hour
  • EURO V exhaust emission regulation
  • easy starting
  • OHV valve guide
  • antivibration system
  • height and side adjustment of the handlebars from the operator´s place
  • 80 mm automatic centrifugal clutch

Technical parameters

Engine type HONDA GCV200
Oil tank volume 0,4 litres
Torque 12,7 N.m
Engine power 6,5 HP
Engine displacement 201 cm3
Weight 20 kg
Article no. 4551
EAN 1005400274
