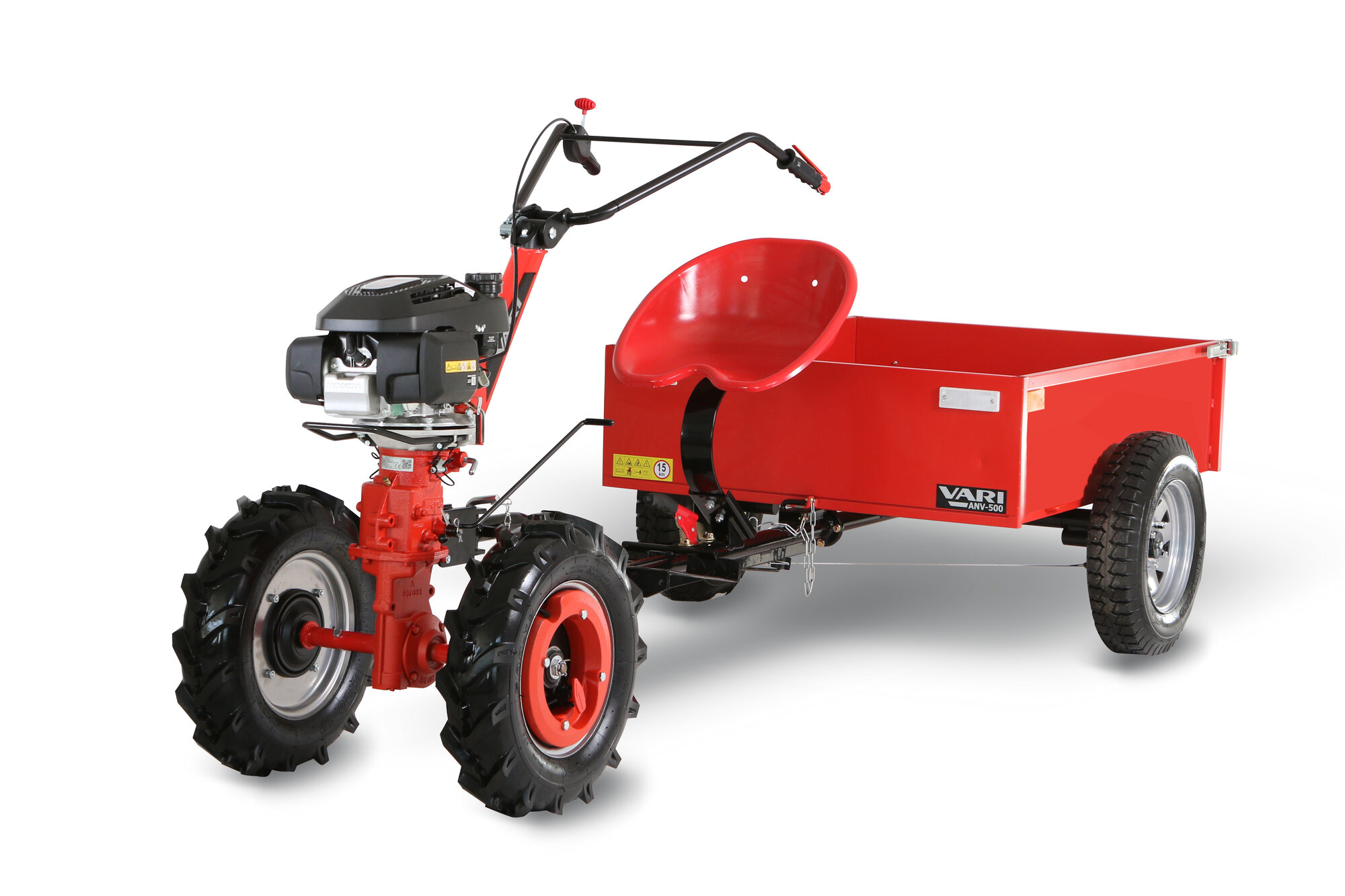

VARI IV GLOBAL minitractor + ANV-500 + DRAWBAR (HONDA GCV200 engine)

Product description

The set of VARI GLOBAL minitractor with the trailer consists of following products:

• PJGCVX200 driving unit
• DSK-317.1/S gearbox
• TN-GLOBAL drive axle
• Z-01 hitch
• ON-01 supporting leg
• ANV-500 trailer

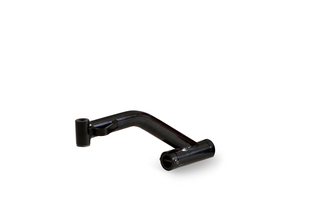

• Drawbar for the ANV-500 trailer

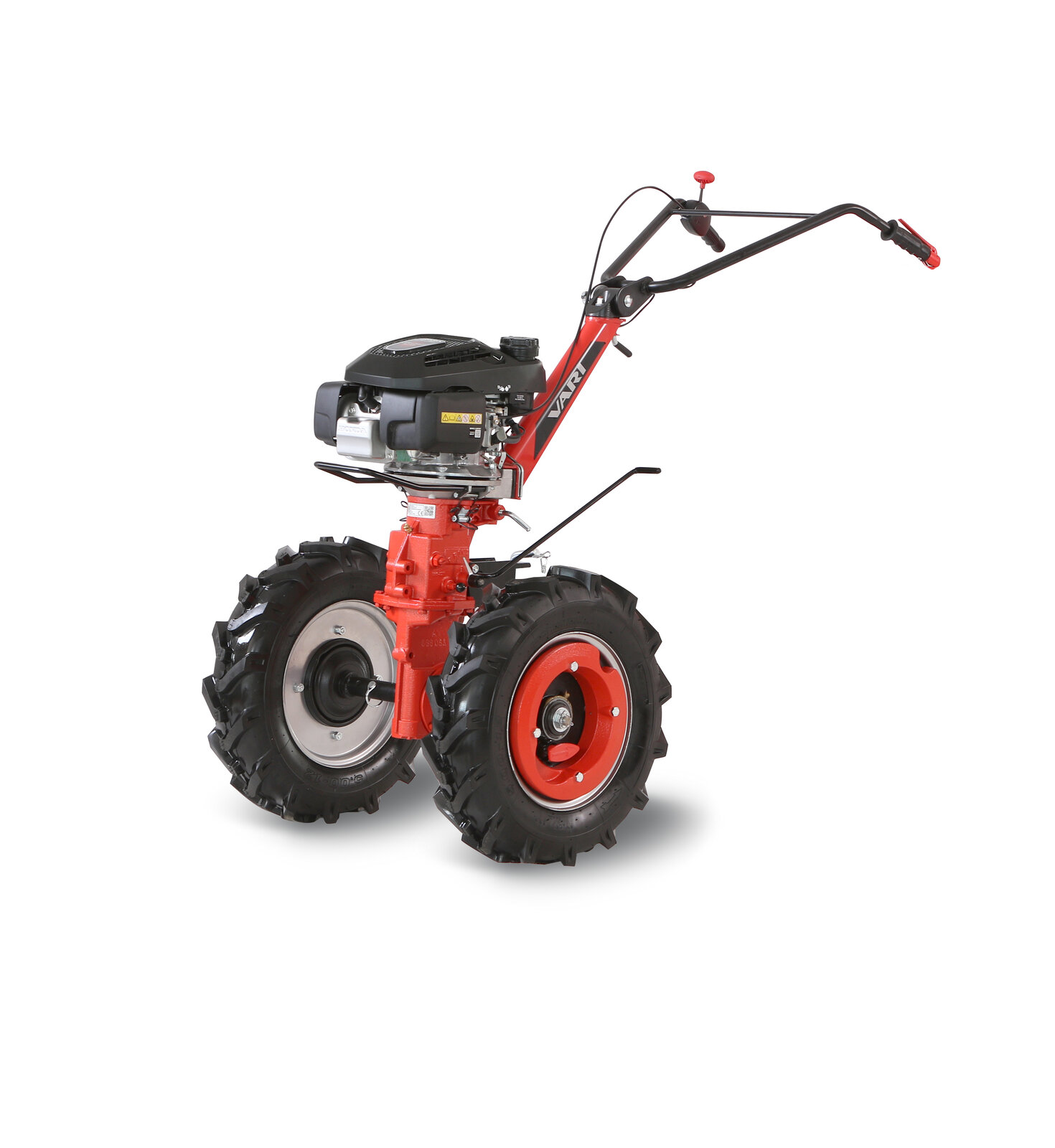

The VARI GLOBAL modular minitractor is a useful helper for gardeners and farmers especially designed for soil cultivation and load transportation. The drive of the VARI IV GLOBAL minitractor is ensured by the DSK-317.1/S gearbox with a long hexagonal axle and the TN-GLOBAL driving axle. The power is transmitted to the gearbox by a three-jaw centrifugal clutch, which is always automatically clamped when rising the engine revolutions using the lever on the handlebars. The heart is the driving unit with the new generation engine - HONDA GCV200 and  with new sprung handlebars, so that the operator feel minimum vibrations. They are height and side adjustable from the operator´s place and are equipped with a safety switching off, which automatically stops the machine in case of the operator´s fall. The machine has three forward speeds, neutral and one reverse speed. They are shifted while the minitractor stands still. The TN-GLOBAL drive axle is equipped with 12” wheels with a tractor pattern and the outer weight. The wheel gauge is 610 mm. The wheels are fitted with an axle lock in three positions, that replaces the function of differential. The minitractor set is including the ANV-500 tipping trailer, which is equipped with big 12” wheels and a new sprung seat made of sheet metal and has loading capacity of 500 kg.
